GraphQL request

Executes a GraphQL query or mutation against a GraphQL-compatible API. It supports both GET and POST methods, along with GraphQL capabilities - filters, arguments, fragments, aliases, and operation names.

Example
This flow retrieves filtered client data from a GraphQL API, converts it into a table format(Convert JSON to DataTable), and validates the results to ensure accurate client information was received. When the GraphQL request fails, Throw Exception node handles the error by displaying or logging an exception message.

Properties

Name	Type	Description
Title	Optional	The title or name of the action.
Configuration	Required	Opens the configuration editor for the GraphQL request.
Description	Optional	A field to describe the action or its purpose.

Returns

Returns the requested data converted to the object type defined in the Response tab of the Configuration property.

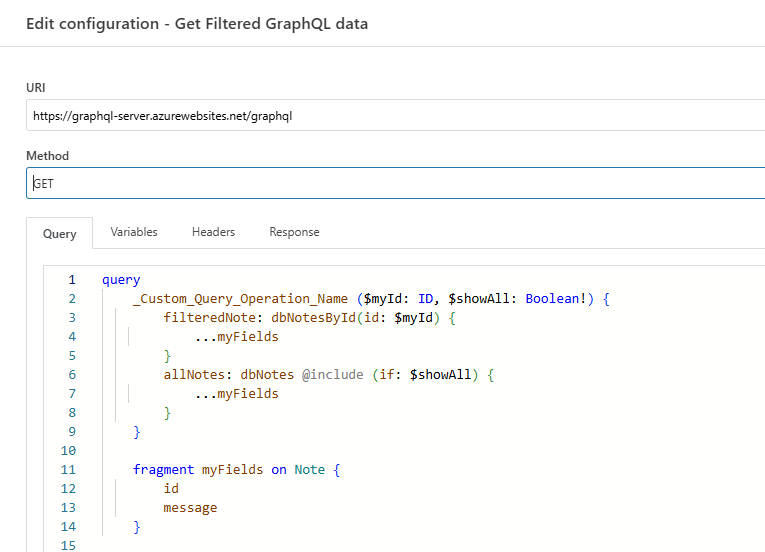

Configuration

Name	Type	Description
URI	Required	The endpoint URL of the GraphQL API to which the request will be sent.
Method	Required	The HTTP method for the request
Query	Required	The GraphQL query (or mutation) to execute.
Variables	Optional	The list of variables used in the GraphQL query.
Headers	Optional	The list of custom HTTP headers used in the GraphQL query.
Response	Optional	The object type of the query (or mutation) response data.
