HTTP send file

Sends (uploads) a file to an HTTP endpoint.

Use this action when you need to upload a file to an HTTP API or web endpoint — for example to submit a generated report, deliver an export to a third-party system, or pass a file to another service for processing. The action sends an HTTP POST request with the file as multipart/form-data content.

Example

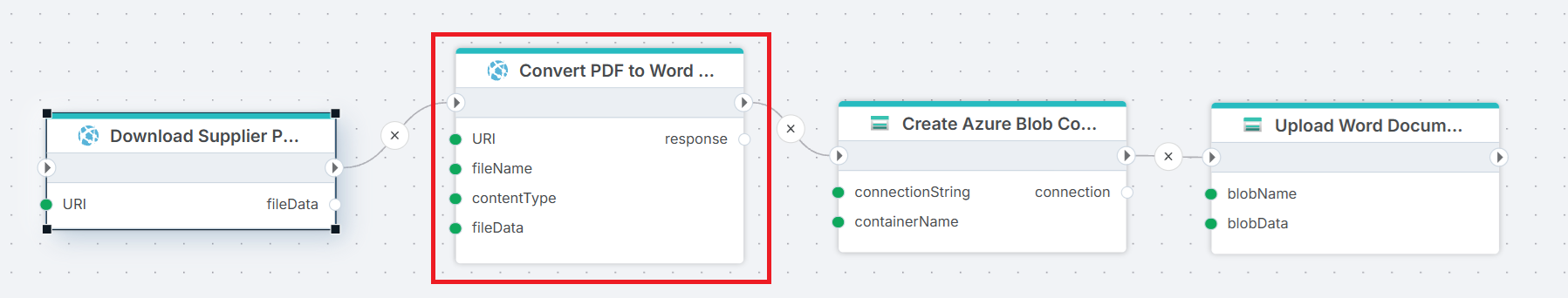

This flow uses HTTP get file to download a PDF invoice from a supplier's API, uses HTTP send file to convert it to an editable Word document, and uploads the result to Azure Blob Storage for further processing.

Properties

Name	Required	Description
Title	No	The title of the action.
Authentication	No	The authentication configuration to use if the endpoint requires it. Supports Basic Authentication, OAuth 2.0 Client Credentials and Bearer token.
File name	Yes	Select or enter the name of the file, including the file extension, for example report.csv.
File data	Yes	Select the source content for the file. It must be a byte array or a Stream.
URI	Yes	Select or enter the URI of the endpoint to send the file to. You can use Flow variables or Workspace Variables to build a dynamic URI.
Query parameters	No	Key/value pairs that are appended to the URI as a query string.
Headers	No	Key/value pairs that are sent as HTTP request headers.
File metadata	No	A JSON object with additional information about the file. See File metadata below.
Content type	No	The MIME type of the file, for example application/pdf or text/csv. If not specified, the content type is resolved from the file name extension. If it cannot be resolved, application/octet-stream is used.
Result variable name	No	The name of the variable containing the HTTP response. Default: response.
Description	No	Additional notes or comments about the action or configuration.

How the file is sent

The file is sent in a POST request with multipart/form-data content:

• The file is added as a form field named file, using the specified File name and Content type.
• If File metadata is defined, it is added as a second form field named metadata, with the file name metadata.json and content type application/json.

The receiving endpoint must accept multipart/form-data uploads and expect the file in the file field. Refer to the documentation of the API you are calling to check that this matches what it expects. If the API expects the raw file as the request body instead, use the HTTP request action.

File metadata

Use File metadata to send additional information together with the file, such as a document type, a reference number, or a description. The metadata is defined as a JSON object, and you can combine hard-coded values and variables.

{
  "documentType": "Invoice",
  "invoiceNumber": "10045",
  "customerId": "100198"
}

Note

As when building a JSON request body, you must remember to add quotes around string and date values.

Returns

Returns an HttpResponse<string> object containing the response from the endpoint.

Property	Description
IsSuccess	true if the endpoint returned a success status code (200–299).
StatusCode	The HTTP status code returned by the endpoint.
Headers	The response headers.
ContentTypeName	The content type of the response, for example application/json.
Content	The response body as a string.

The action does not fail if the endpoint returns an error status code. Use an If action to check the IsSuccess property, and for example throw an exception if the upload failed.
